Vulkan Conical Connection

The First Xbody

Designed to increase primary stability and peri-implant crestal bone tissue stability. An ideal system for immediate post-extraction implantation, for immediate loading and offering new prosthetic solutions focused on soft tissue management.

Main Features

1. Simplicity

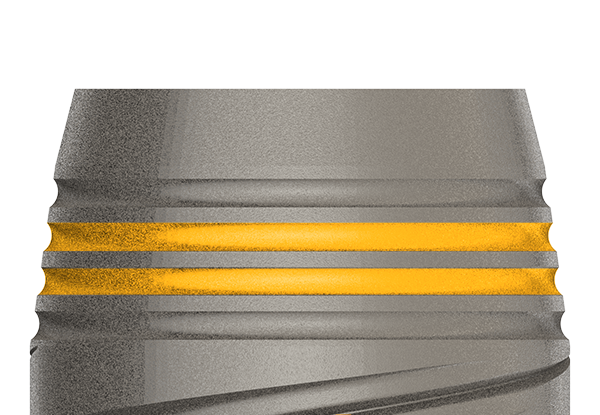

The high precision external hex connection offers wide compatibility, maximum simplicity and prosthetic comfort. The polished coronal zone offers versatility in placement and the micro grooves in the cortical zone increase the primary stability of the ensemble and reduce the risk of cortical bone resorption.

2. Optimal load distribution

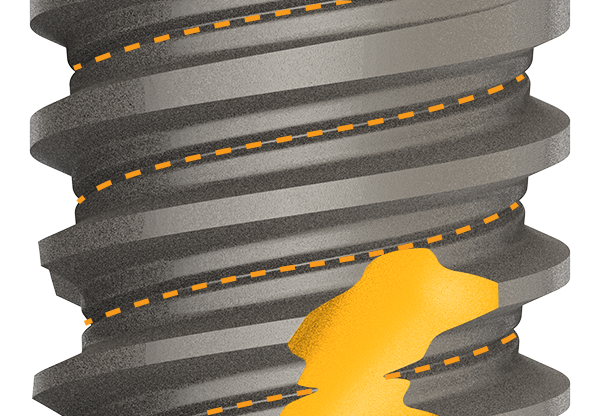

The trapezoidal thread profile optimizes load distribution, facilitates the self-tapping function and presents large Bone Contact Surface Indices (BIC).
The double thread pitch allows a rapid advance of 1.8mm per turn, facilitating insertion. In addition, the conicity of the assembly allows the bone to gradually condense, facilitating primary stability.

3. Self tapping

The double thread pitch allows a rapid advance of 1.8mm per turn, facilitating insertion. In addition, the conicity of the assembly allows the bone to gradually condense, facilitating primary stability.

4. Reduced Risks

The blunt end of the apical zone simulates the natural root, improves maneuverability in insertion and reduces the risk of injury to anatomical structures

2 prosthetic platforms available: MiP and NP

MiP, to go where others cannot.

The MiP 3.0 platform offers you the possibility to perform dental implant treatments in areas with limited space.
The conical connection implant with 3.00 mm platform is only indicated for lateral single incisors in the maxilla and lateral and central incisors in the mandible.

Ø 3.00

pmc_Implants_Conical_Connection_MiP_300_EN

NP 4 diamaters, 1 prosthetic connection.

The NP 3.50 mm platform simplifies prosthetic procedures with a single prosthetic connection for the four main diameters.

Patform: 3.5 mm
Prosthetic Connection: 3:00 mm
Metrics: M-1.4

Ø 3.30

pmc_Implants_Conical_Connection_NP_330_EN

Ø 3.75

pmc_Implants_Conical_Connection_NP_375_EN

Ø 4.20

pmc_Implants_Conical_Connection_NP_420_EN

Ø 5.00

pmc_Implants_Conical_Connection_NP_500_EN

Size Guide

Surface Treatment

Conical Connection. Prosthetic Solutions

Basic Components

pmc1_Implants_Conical_Connection_componentes_basicos

Transepithelial Multi-Use®

pmc2_Implants_Conical_Connection_Transpitelial_Multi_use

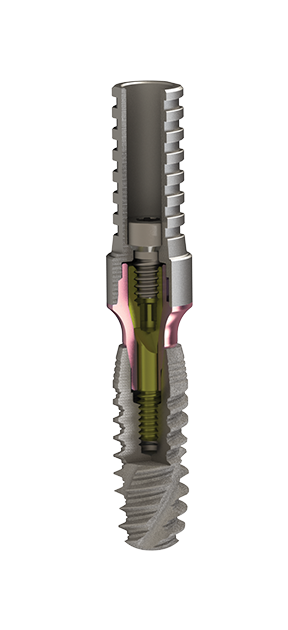

Vulkan Tissue Care®

pmc3_Implants_Conical_Connection_Tissue_Care

Overdentures VulkanLoc®

pmc4_Implants_Conical_Connection_Sobredentaduras_VulkanLoc

CAD-CAM Components

pmc5_Implants_Conical_Connection_Componentes_CADCAM

Download the Complete Catalogue

pmc6_Implants_Conical_Connection_Catalogo_v1

Conical Connection Surgical Kit

Clinical Cases

Discover our new Vulkan Conical Connection Xbody implant system in action in the clinical case gallery
